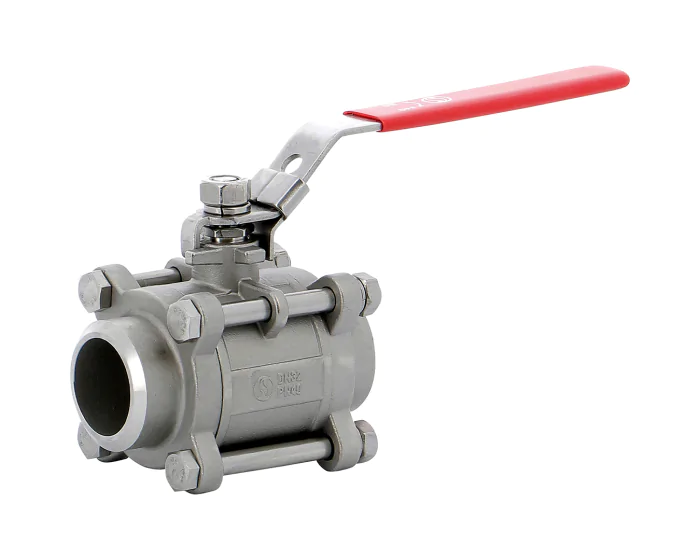

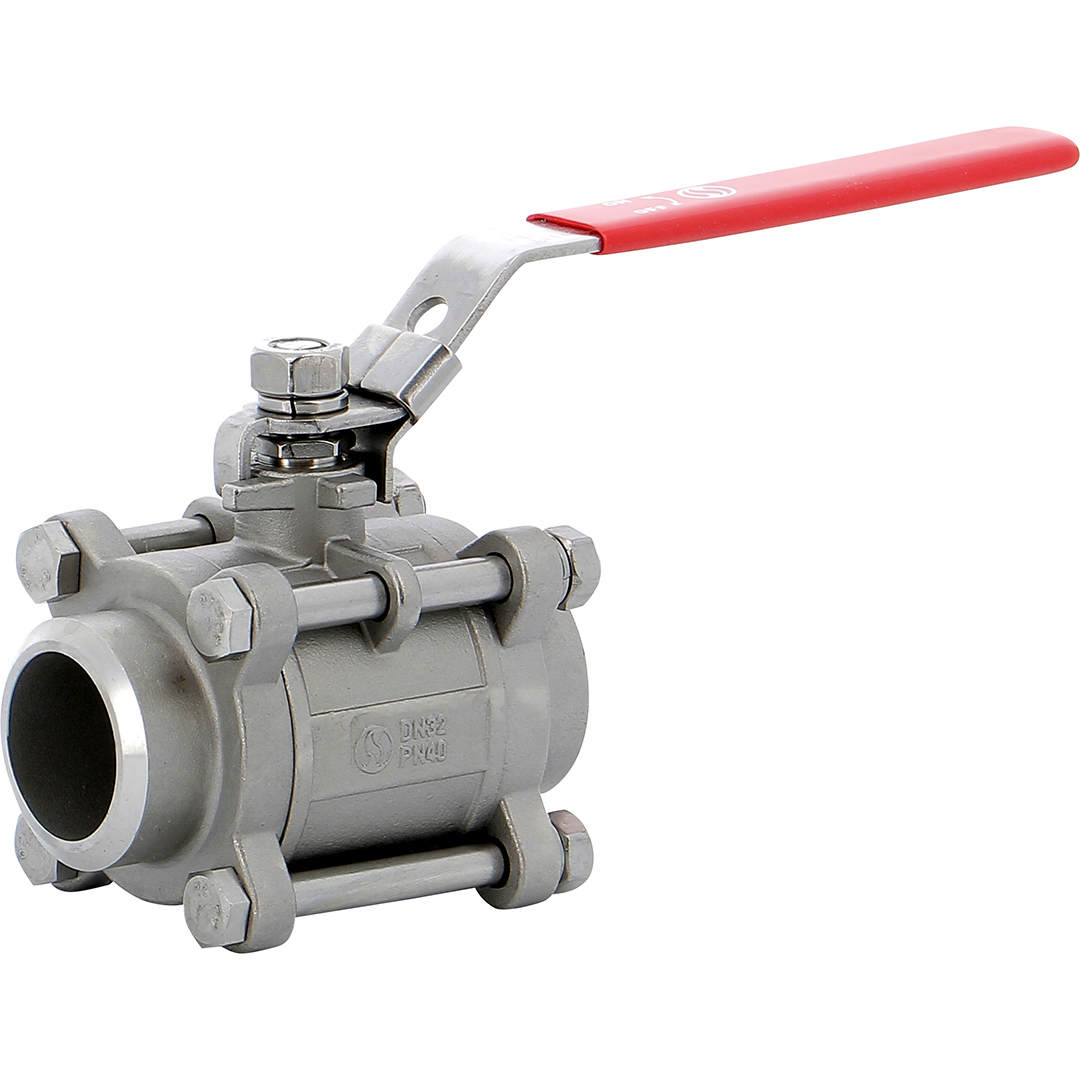

The 791 series ball valve , 3-piece body in stainless steel, welding BW, with PTFE packing gland for the chemical, pharmaceutical and petrochemical industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Torque (Nm) | 2 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 775.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 5.2 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | Welding BW |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 316 |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Ball valve design | 3-piece body |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding BW Stainless steel CF8M (1.4408) Full 3-piece body DN8 - 1/4'' | 791008 | S1008629 |
€9.36
(excl. btw)
|
add to cart |
| Welding BW Stainless steel CF8M (1.4408) Full 3-piece body DN10 - 3/8'' | 791010 | S1008630 |
€9.51
(excl. btw)
|
add to cart |
| Welding BW Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' | 791015 | S1008631 |
€12.63
(excl. btw)
|
add to cart |
| Welding BW Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' | 791020 | S1008632 |
€15.33
(excl. btw)
|
add to cart |
| Welding BW Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' | 791025 | S1008633 |
€22.24
(excl. btw)
|
add to cart |
| Welding BW Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 | 791032 | S1008634 |
€32.46
(excl. btw)
|
add to cart |
| Welding BW Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 | 791040 | S1008635 |
€54.09
(excl. btw)
|
add to cart |
| Welding BW Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' | 791050 | S1008636 |
€77.59
(excl. btw)
|
add to cart |
| Welding BW Stainless steel CF8M (1.4408) Full 3-piece body DN65 - 2''1/2 | 791065 | S1008637 |
€190.26
(excl. btw)
|
add to cart |
| Welding BW Stainless steel CF8M (1.4408) Full 3-piece body DN80 - 3'' | 791080 | S1008638 |
€291.27
(excl. btw)
|
add to cart |
| Welding BW Stainless steel CF8M (1.4408) Full 3-piece body DN100 - 4'' | 791100 | S1008639 |
€507.07
(excl. btw)
|
add to cart |
